Products > Advantech > Intelligent Connectivity > Access Point/Client Bridges

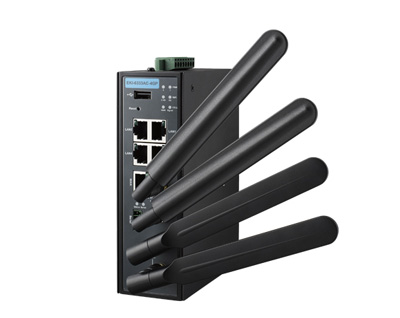

EKI-6333AC-4GP

IEEE 802.11 a/b/g/n/ac Wi-Fi AP

Main Features

Supports 802.11n MIMO 2T2R
WLAN transmission rate up to 867 Mbps
Supports secure access with WEP, 802.1x, WPA/WPA2-Personal,
WPA/WPA2-Enterprise
Provides Web-based configuration
Supports dual bands 2.4G/5G concurrent

Introduction

The EKI-6333AC-2G is a feature-rich wireless AP providing reliable wireless connectivity for industrial environments. The PoE injector enhances flexibility in deployment of this AP even where the DC power supply is hard to fulfill.

Specifications
PartNumber	EKI-6333AC-4GP-A
Certification
EMC	CE, EN55032/24
Environment
Relative Humidity	10 ~ 95% RH
Temperature (Operating Range)	-30 ~ 70°C (-22 ~ 158°F)
Temperature (Storage Range)	-40 ~ 80°C (-40 ~ 176°F) x
Ethernet Communication
RJ-45 Port Connector Type !	RJ-45
RJ-45 Port Number	5
RJ-45 Transmission Speed	10/100/1000 Mbps
Mechanism
Dimensions (W x H x D)	-
LED Indicator	System: Power, Status WLAN: Quality, Link/Active LAN: Link/Active
Mounting (DIN-rail)	Yes
Weight	1.5 kg
Power
Power Consumption	20W
Power Input (DC)	24 ~ 56 VDC
Software (SW)
Configuration	Web browser
Protocols	ARP, ICMP, IPv4, IPv6, TCP, UDP, DHCP Client, DHCP Server, Auto IP, Telnet, DNS, SNMP, HTTP, DMZ, PPPoE, VPN Passthrough, Telnet Server, SSH Server, FTP Server, QoS
Warranty
Warranty Period	2 years
Wireless Communication
Wi-Fi 2.4 GHz	Yes
Wi-Fi 5 GHz	Yes
Wi-Fi Antenna Connector Type	Reverse SMA
Wi-Fi Antenna Number	4
Wi-Fi Free Space Range	Open space 100 m
Wi-Fi Network Mode	Infrastructure
Wi-Fi Operation Mode	Access Point/ Repeater/ Client mode
Wi-Fi RF Capability	2T2R
Wi-Fi Transmission Speed	Up to 1167 Mbps
Wireless Security	WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise
Wi-Fi Standard	IEEE 802.11 a/b/g/n/ac
