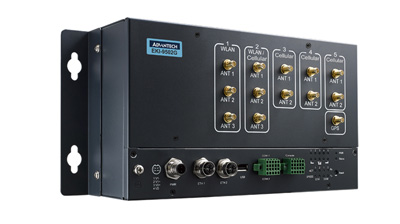

EKI-9502G

EN50155 Train-To-Ground Wi-Fi/Cellular Router

Main Features

Cellular connectivity with dual SIM cards designed for each cellular module
Supports up to 4 WWAN connectivity
Supports wide temperature range: -40 ~ 70°C
Designed with 24Vdc to 110Vdc isolated power input
Flexible design with serial interface for Modbus RTU and serial communication protocol
Supports IPSec, OpenVPN secured tunnel
Firewall with SPI and IPS function prevents cyber attacks and enhances network efficiency
Complies with EN50155
Supports multi-WAN load balance

Introduction

The EKI-9502G EN50155 train-to-ground Wi-Fi/cellular router is designed for rolling stock applications. It provides secure Internet connectivity while offering superior application flexibility.

Specifications
Part Number		EKI-9502G-CXRW-A
* Port Configuration	Description	EN50155 Train-To-Ground Wi-Fi/Cellular Router
Certification	EMC	EN 55032/EN 55024/EN 50121-3-2/EN 50121-4
	EMI	FCC Part 15 Subpart B (Class B)
	EMS	EN 61000-6-1 EN 61000-6-3 EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-8 EN 61000-4-11
Environment	Relative Humidity	10 ~ 95% RH
	Temperature (Operating Range)	-40 ~ 70° C (-40 ~ 158° F)
	Temperature (Storage Range)	-40 ~ 80°C (-40 ~ 176°F)
Ethernet Communication	RJ45 Port Connector Type	M12
	RJ45 Port Number	2
	RJ45 Transmission Distance	N/A
	RJ45 Transmission Speed	10/100/1000 Mbps
Mechanism	Dimensions (W x H x D)	280 x 160 x 85mm (11" x 6.3" x 33.5")
	Enclosure (Metal)	Metal shell with solid mounting kits
	Enclosure (Plastic)	N/A
	IP Rating	N/A
	LED Indicator	System: Power, Status WLAN: Quality LAN: Link/Active
	Mounting (DIN-rail)	N/A
	Mounting (Pole Mount)	N/A
	Mounting (Stack)	N/A
	Mounting (Wall)	Yes
	Weight	1.5kg
Power	Power Connector Type	M12 (5 pin A-coded)
	Power Consumption	21W
	Power Input (AC)	N/A
	Power Input (DC)	24 ~ 110 VDC
	Redundant Dual Inputs	N/A
Software	Configuration	Web browser
	Protocols	ARP, ICMP, IPv4, TCP, UDP, DHCP Client/Server, DNS proxy, HTTP, SNTP, Telnet, SSH, VPN
	Reboot Trigger	N/A
Warranty	Warranty Period	5 years
Wireless Communication	Wi-Fi 2.4 GHz	Yes
	Wi-Fi 5 GHz	Yes
	Wi-Fi Antenna Connector Type	Reverse SMA
	Wi-Fi Antenna Number	N/A
	Wi-Fi Free Space Range	N/A
	Wi-Fi Network Mode	N/A
	Wi-Fi Operation Mode	Access Point/ Client mode
	Wi-Fi RF Capability	3T3R
	Wi-Fi Transmission Speed	N/A
	Wireless Security	Open System , Shared Key, Lagacy 802.1X
	Wireless Standard	IEEE 802.11 a/b/g/n/ac
