Products > Advantech > Intelligent Connectivity > Access Point/Client Bridges

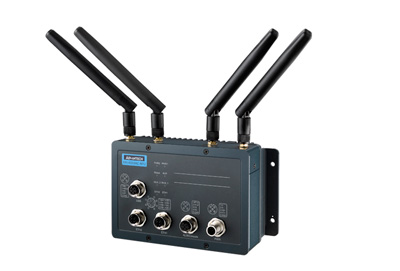

EKI-6333AC-M12

EN50155 Railway Concurrent Dual-Band 2T2R Wi-Fi AP/Client

Main Features

Support IEEE 802.11n MIMO 2T2R
WLAN transmission rate up to 867 Mbps
Support secure access with WEP, 802.1x, WPA/WPA2-Personal, WPA/WPA2-Enterprise
Provides web-based configuration
Support dual band 2.4G/5G concurrent
Design with dual radio modules
Anti-vibration M12 design
Wide range power input 24/48/72/96/110 VDC

Introduction

EKI-6333AC-M12 is designed for railway applications, including rolling stock. It supports AP/Bridge/Client mode and is designed with dual 2.4/5GHz wireless modules, IEEE 802.11 a/b/g/n/ac concurrent dual bands, and is with M12 connectors to provide a reliable wireless connectivity.

Specifications
Part Number		EKI-6333ACXL-M12-A
* Port Configuration	Description	EN50155 Industrial M12 Wi-Fi AP
Certification	EMC	EN 55032/EN 55024/EN 50121-3-2/EN 50121-4
	EMI	FCC Part 15 Subpart B (Class B)
	EMS	EN 61000-6-1 EN 61000-6-3 EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-8 EN 61000-4-11
Environment	Relative Humidity	10 ~ 95% RH
	Temperature (Operating Range)	-40 ~ 70° C (-40 ~ 158° F)
	Temperature (Storage Range)	-40 ~ 80°C (-40 ~ 176°F)
Ethernet Communication	RJ45 Port Connector Type	M12
	RJ45 Port Number	2
	RJ45 Transmission Distance	N/A
	RJ45 Transmission Speed	10/100/1000 Mbps
Mechanism	Dimensions (W x H x D)	186 x 50.1 x 104.8 mm (7.32" x 1.97" x 4.13")
	Enclosure (Metal)	Metal shell with solid mounting kits
	Enclosure (Plastic)	N/A
	IP Rating	N/A
	LED Indicator	System: Power1, Power 2, Status WLAN: Quality LAN: Link/Active
	Mounting (DIN-rail)	N/A
	Mounting (Pole Mount)	N/A
	Mounting (Stack)	N/A
	Mounting (Wall)	Yes
	Weight	1.5kg
Power	Power Connector Type	M12 (5 pin A-coded)
	Power Consumption	Max. 14W
	Power Input (AC)	N/A
	Power Input (DC)	24 ~ 48 VDC
	Redundant Dual Inputs	Yes
Software	Configuration	Web browser
	Protocols	ARP, ICMP, IPv4, IPv6, TCP, UDP, DHCP Client, DNS, HTTP, SNTP
	Reboot Trigger	N/A
Warranty	Warranty Period	5 years
Wireless Communication	Wi-Fi 2.4 GHz	Yes
	Wi-Fi 5 GHz	Yes
	Wi-Fi Antenna Connector Type	Reverse SMA
	Wi-Fi Antenna Number	4
	Wi-Fi Free Space Range	Open space 100 m
	Wi-Fi Network Mode	Infrastructure
	Wi-Fi Operation Mode	Access Point/ Bridge/ Client mode
	Wi-Fi RF Capability	2T2R
	Wi-Fi Transmission Speed	Up to 867Mbps
	Wireless Security	Open System, Shared Key, Lagacy 8021X, WPA/WPA2, WPA-PSK (TKIP), WPA2-PSK(AES)
	Wireless Standard	IEEE 802.11 a/b/g/n/ac
