Products > SIEMENS > Industrial Monitor

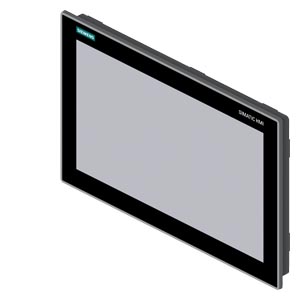

SIMATIC IFP1500

SIMATIC IFP1500 Basic

Main Features

- SIMATIC IFP1500 Basic Flat Panel 15" display (16:9) Touch
- Touch screen
- 1366 x 768 pixels
- standard up to 5 m
- for 24V DC
- DisplayPort/VGA interface

Introduction

SIMATIC IFP1500 Basic Flat Panel 15"

** Datasheet download

General information
Product type designation	IFP1500 Basic
Short designation	Basic Flat Panel 15" Touch
Display
Design of display	TFT display, LED backlighting
Screen diagonal	15.6 in; 15"
On Screen Display (OSD) configuration	No
Number of colors	16 000 000; 16 million
Resolution (pixels)
● Image resolution	1 366 x 768
● Horizontal image resolution	1 366 pixel
● Vertical image resolution	768 pixel
General features
● Detachable from computer unit	5 m
Backlighting
● Type of backlighting	LED
● MTBF backlighting (at 25 °C)	50 000 h
● Backlight dimmable	Yes; 0-100 %
Control elements
Control elements	single-touch screen
Input device
● Integrated mouse cursor control	No
Touch operation
● Design as touch screen	Yes; Analog-resistive
Installation type/mounting
Design	Built-in unit
Front mounting	Yes
VESA mounting	Yes; VESA 100 x 100 integrated
Mounting in portrait format possible	Yes
Mounting in landscape format possible	Yes
Built-in unit	Yes; Portrait mode possible
maximum permitted forward tilt angle from vertical	45°
maximum permitted backward tilt angle from vertical	45°
Supply voltage
Type of supply voltage	DC
Rated value (DC)	24 V
permissible range, lower limit (DC)	20.4 V
permissible range, upper limit (DC)	28.8 V
Power loss
Power loss, typ.	17 W
Power loss, max.	60 W
Interfaces
Number of USB interfaces	2; USB 2.0 (downstream)
USB on the rear	Yes; 2x onboard
Video interfaces
● DisplayPort	Yes
Touch interfaces
● USB	Yes; USB Type A
Degree and class of protection
IP (at the front)	IP65
Standards, approvals, certificates
CE mark	Yes
cULus	Yes; UL 61010-1, UL 61010-2-201
RCM (formerly C-TICK)	Yes
KC approval	Yes
EAC (formerly Gost-R)	Yes
FCC	Yes
Ambient conditions
Ambient temperature during operation
● min.	0 °C
● max.	45 °C
Ambient temperature during storage/transportation
● min.	-20 °C
● max.	60 °C
Relative humidity
● Operation, max.	85 %
Vibrations
● Vibration load in operation	5 m/s²
● Vibration load during transport/storage	10 m/s²
Shock testing
● Shock load during operation	150 m/s²
● shock acceleration during storage/transport	250 m/s²
Mechanics/material
Enclosure material (front)
● Aluminum	Yes
Dimensions
Width of the housing front	406 mm
Height of housing front	258 mm
Mounting cutout, width	388 mm
Mounting cutout, height	241 mm
Overall depth	59 mm
Weights
Weight (without packaging)	4.1 kg
