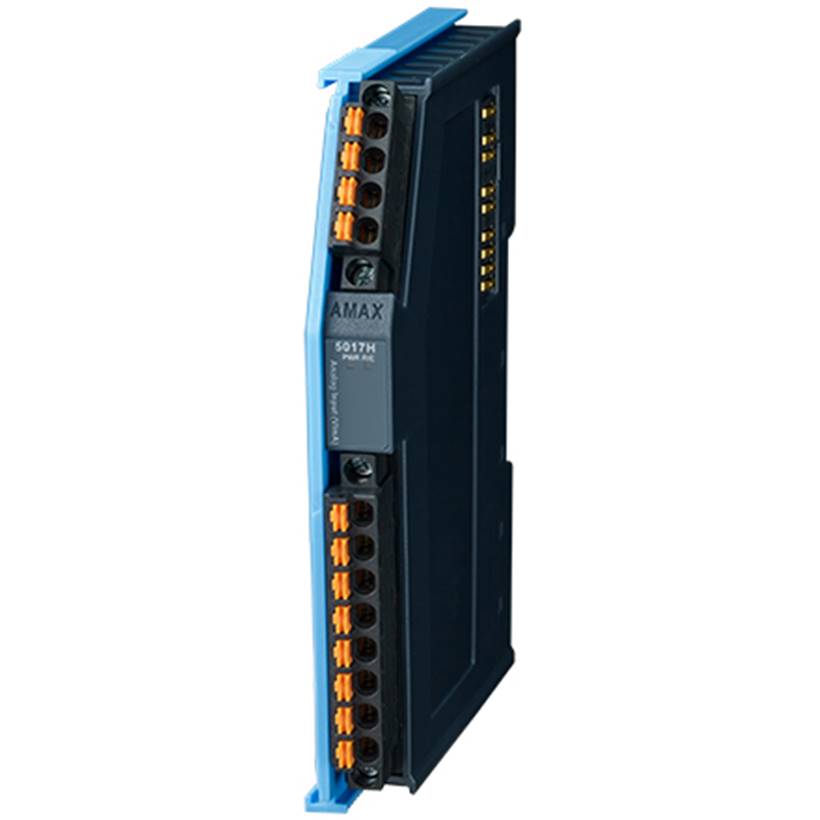

AMAX-5017H

4-ch High Speed AI Module

Main Features

Channels : 4 (Differential)
Input Type : V, mA
Voltage Range : ±10 V, 0 ~ 10 V, 0 ~ 20 mA
Input Impedance : 800 kΩ, for voltage input, 500 Ω, for current input
Resolution : 16-bit with ±0.1% for voltage input, 16-bit ±0.2% for current input
FSR accuracy : @25°C
Sample Rate : 10k sample/s (per channel)

Introduction

4-ch High Speed AI Module

Specifications
PartNumber	AMAX-5017H-A
Analog Input
Channels	4
Input Range	±10 V, 0 ~ 10 V, 0 ~ 20 mA
lnput Type	V, mV
Resolution(Bits)	16-bit with ±0.1% FSR accuracy @25°C for voltage input, 16-bit with ±0.2% FSR accuracy @25°C for current input
Sampling Rates(S/s)	10k S/s (per channel)
Environment
Isolation Voltage	2,000 VDC
Operating Temperature	-25~60 °C (-14~140 °F)
Relative Humidity	5~95% RH (non-condensing)
Storage Temperature	-40~85 °C (-40~185 °F)
EtherCAT
Cycle Time	100 μs
Hardware
Certification	CE, FCC class A
LED Indicators	PWR, RUN / ERROR
Power Consumption	2 W@ 24 VDC
Watchdog Timer	1.6 s
Mechanical
Enclosure	PC + ABS
Mounting	DIN-rail
Weight (Net)	Approx. 80 g
