Main Features

• CODESYS Control Real Time Engine (RTE) & Visualization (Target & Web)
• Optimized BIOS adjustment & Embedded O.S. for real-time control
• SoftPLC reach 50μs control processing cycle time, Motion control achieve 64-axis with 1ms cycle time
• IEC-61131-3 PLC language support (FBD, LD, IL, ST, SFC)
• Upstream connection easy achieve IT/OT integration (MQTT, OPC UA & ODBC)
• EtherCAT, ProfiNet, Ethernet/IP and Modbus TCP/RTU ready for control
• CANopen and ProfiBus optional by iDoor expansion module
• SoftMotion or CNC Robotics module license remote upgrade from Advantech WISE-PaaS marketplace or CODESYS store
• Advantech Data Connect (ADC) Library provide flexible & high speed data connected with 3rd party application software throuh Symbols (PLC Handler) & Shared Memory (C/C++/C#)

Introduction

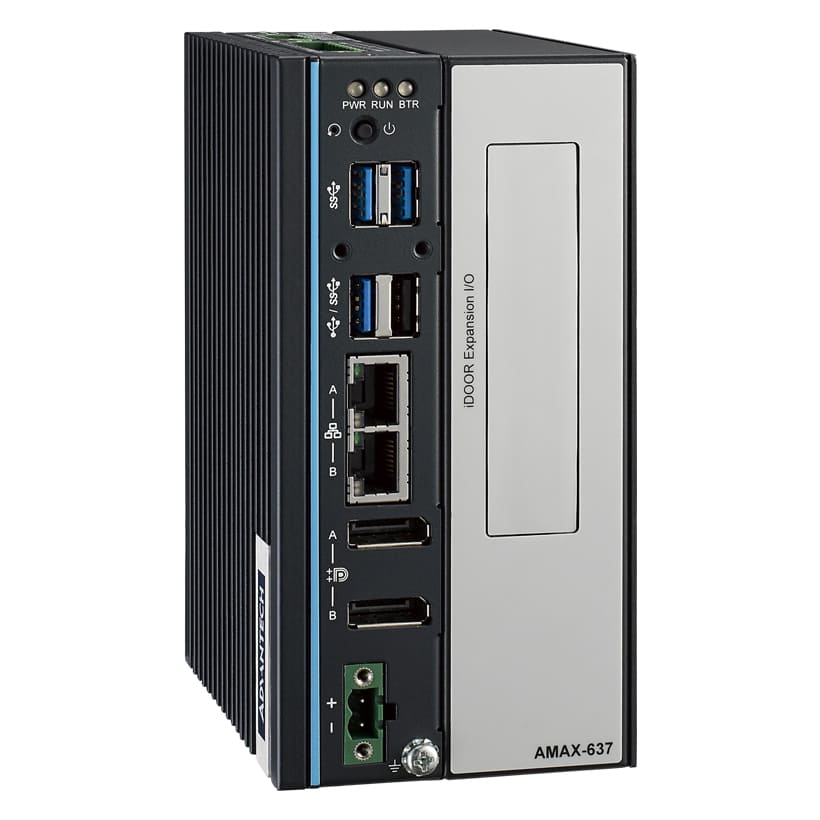

AMAX-658/637 is integrated PC-based Real-time SoftPLC & SoftMotion CODESYS Ready Edge Controller programmed in IEC-61131-3 language. According to powerful control software which provide real-time industry Ethernet control protocol like EterCAT, EtherNet/IP, ProfiNet, Profibus, CANopen and Modbus.
