Main Features

• General operation temperature range (-20~60°C / -4~140°F)
• Port isolation for 8 x DI, 8 x DO, 4 x COM
• Supports M.2 M key 2280 NVMe SSD Storage
• Supports M.2 B+M key 2242 storage and 3042/3052 cellular modules
• Supports M.2 E Key 2230 Wifi modules
• Supports Time-Sensitive Network(TSN) technology
• Remote out-of-band (OOB) power management with Advantech iBMC technology
• Onboard TPM 2.0 to provide hardware security
• Compliant with IEC 61010-1 safety requirements

Introduction

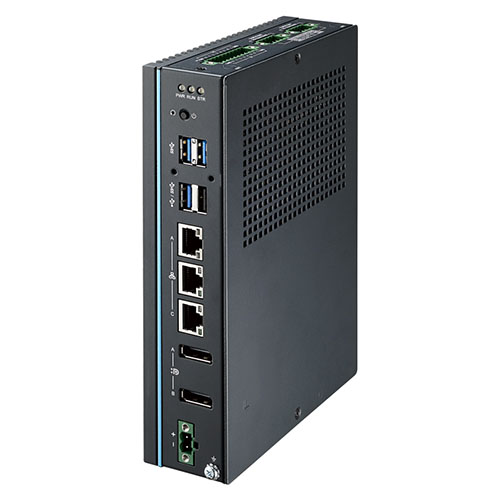

Advantech’s UNO-100 series are DIN-rail integrated controllers that feature a modular design for flexible configuration according to specific usage requirements. UNO-148 is a high-performance DIN-rail IoT controller supports TSN feature to fulfill time synchronized application.
