Products > Advantech > Embedded Automation Computers > Industrial IoT Edge Gateway

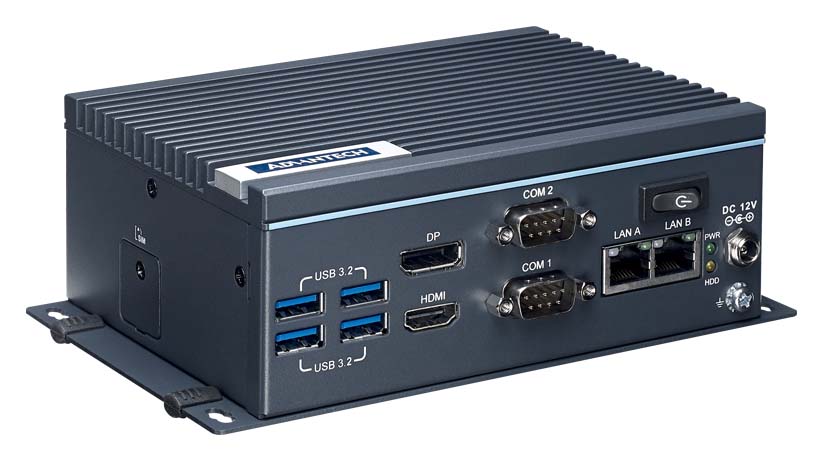

UNO-238

Compact IoT Edge Computer with Intel® Core™ i Processor, 2 x GbE, 4 x USB 3.2, 2 x RS-232/422/485, 1 x HDMI, 1 x DP, 1 x GPIO

Main Features

- 8th generation Intel® Core™ i processor
- 2 x GbE, 4 x USB3.2, 2 x RS-232/422/485, 1 x HDMI, 1 x DP, 1 x GPIO (8 bit)
- Compact, fanless design
- Rubber stopper for stand mount and optional kit for DIN-rail mounting
- Threaded DC jack for reliable power supply
- Optimized mechanical design for easy RAM swapping

Introduction

Designed for high-performance computing 8th gen applications, UNO-238 provides a competitively priced computing solution in an optimized compact form factor. Also, UNO-238 is an ideal platform for IT-level applications that require semi-industrial yet cost-efficient computing solutions.

Specifications
PartNumber	UNO-238-87N1AU	UNO-238-87N1AE	UNO-238-85N1AE	UNO-238-83N1AE	ESRP-EIS-U238
Environment
Ingress Protection	IP20	IP20	IP20	IP20	-
Operating Temperature	-20~60 °C (-4~140 °F)	-20~60 °C (-4~140 °F)	-20~60 °C (-4~140 °F)	-20~60 °C (-4~140 °F)	-
Relative Humidity	10~95% RH (non-condensing)	10~95% RH (non-condensing)	10~95% RH (non-condensing)	10~95% RH (non-condensing)	-
Shock Protection	50 G, half sine	50 G, half sine	50 G, half sine	50 G, half sine	-
Storage Temperature	-40~85 °C (-40~185 °F)	-40~85 °C (-40~185 °F)	-40~85 °C (-40~185 °F)	-40~85 °C (-40~185 °F)	-40~85 °C (-40~185 °F)
Vibration Protection	3 Grms, random	3 Grms, random	3 Grms, random	3 Grms, random	-
Hardware
Certification	CB, UL, CE, FCC, CCC, BSMI	CB, UL, CE, FCC, CCC, BSMI	CB, UL, CE, FCC, CCC, BSMI	CB, UL, CE, FCC, CCC, BSMI	-
CPU	8th Gen. Intel® Core™ i7-8665UE 1.7GHz Quad-Core	8th Gen. Intel® Core™ i7-8665UE 1.7GHz Quad-Core	8th Gen. Intel® Core™ i5-8365UE 1.6GHz Quad-Core	8th Gen. Intel® Core™ i3-8145UE 2.2GHz Dual-Core	-
Graphics Engine	Intel® UHD Graphic 620	Intel® UHD Graphic 620	Intel® UHD Graphic 620	Intel® UHD Graphic 620	-
Hardware Security	TPM 2.0	TPM 2.0	TPM 2.0	TPM 2.0	TPM 2.0
Memory	1 x DDR4 SO-DIMM Slot	1 x DDR4 SO-DIMM Slot	1 x DDR4 SO-DIMM Slot	1 x DDR4 SO-DIMM Slot	-
OS Support	Microsoft® Windows 10 2019 LTSC, Linux	Microsoft® Windows 10 2019 LTSC, Linux	Microsoft® Windows 10 2019 LTSC, Linux	Microsoft® Windows 10 2019 LTSC, Linux	-
Power Input	12 VDC	12 VDC	12 VDC	12 VDC	-
Storage	32 G eMMC	32 G eMMC	32 G eMMC	32 G eMMC	-
LED Indicators	PWR	PWR	PWR	PWR	-
Watchdog Timer	1~255 s	1~255 s	1~255 s	1~255 s	-
I/O Interface
Audio	Line-Out	Line-Out	Line-Out	Line-Out	Line-Out
Displays	1 x HDMI, 1 x DP	1 x HDMI, 1 x DP	1 x HDMI, 1 x DP	1 x HDMI, 1 x DP	-
Expansion	1 x M.2 B key, 1 x M.2 E key	1 x M.2 B key, 1 x M.2 E key	1 x M.2 B key, 1 x M.2 E key	1 x M.2 B key, 1 x M.2 E key	-
LAN Ports	2 x 10/100/1000 Mbps	2 x 10/100/1000 Mbps	2 x 10/100/1000 Mbps	2 x 10/100/1000 Mbps	2 x 10/100/1000 Mbps
Power Connector	1 x DC Jack	1 x DC Jack	1 x DC Jack	1 x DC Jack	1 x Lockable DC Jack
Serial Ports	2 x RS-232/422/485	2 x RS-232/422/485	2 x RS-232/422/485	2 x RS-232/422/485	2 x RS 232/422/485
USB Ports	4 x USB 3.2	4 x USB 3.2/td>	4 x USB 3.2	4 x USB 3.2	-
Mechanical
Dimension (W x H x D)	150 x 107 x 60 mm	150 x 107 x 60 mm	150 x 107 x 60 mm	150 x 107 x 60 mm	-
Enclosure	Aluminum housing	Aluminum housing	Aluminum housing	Aluminum housing	-
Weight (Net)	1.8 kg (3.9 lb)	1.8 kg (3.9 lb)	1.8 kg (3.9 lb)	1.8 kg (3.9 lb)	-
Mounting	Stand, Din-rail	Stand, Din-rail	Stand, Din-rail	Stand, Din-rail	-
