Products > Advantech > Embedded Automation Computers > Industrial IoT Edge Gateway

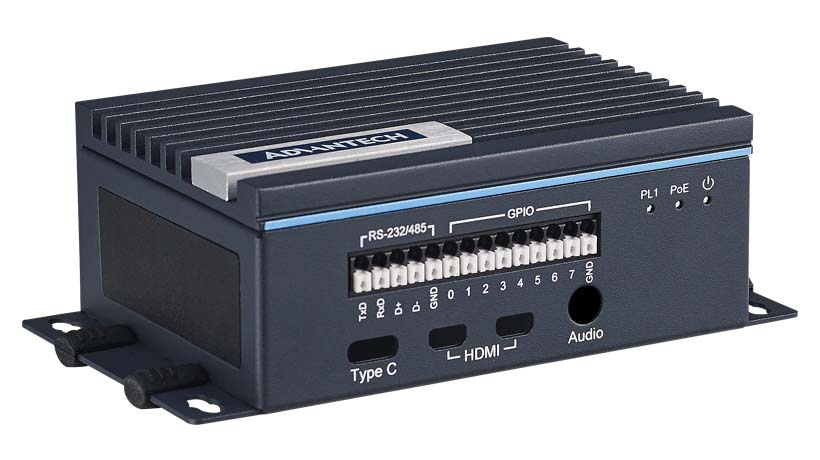

UNO-220-P4N2

Industrial Raspberry Pi 4 HAT Gateway Kit with POE function, TPM, 1 x RS-232/485, 8 x GPIO, 8 GB SD Card, and AdvRaspbian OS

Main Features

- Industrial-grade gateway kit provides RPi-ready solutions for rapid prototyping
- Protects from dust accumulation and extreme temperatures
- Industrial I/O board with additional RS-232/485 and GPIO ports
- PoE functionality enables power support via an Ethernet cable
- Battery-backed RTC for fail-safe time keeping
- Built-in TPM provides hardware-based security for data protection
- OS enables automatic system identification and configuration of GPIOs and drivers
- Supports wall mounting and DIN-rail installation for industrial applications
- LED indicators enable easy maintenance

Introduction

UNO-220 industrial-grade chassis is designed for customers using Raspberry Pi 4 (RPi 4) single-board computers (SBCs) in IoT applications. Featuring a system-image OS equipped micro SD card, an RPi 4 HAT I/O board, additional RS-232/485 GPIOs, and an RTC battery backup for precise time keeping.

Specifications
PartNumber	UNO-220-P4N2AE
Environment
Ingress Protection	IP40
Relative Humidity	10~95% RH (non-condensing)
Hardware
Hardware Security	TPM 2.0
I/O	8 x GPIO
I/O Interface
Serial Ports	1 x RS-232/485 (Terminal Block)
Power Requirements
Output PoE+ Power	PSE for 802.3at/802.3af PoE network
