Main Features

• 8 x Simultaneously Analog Inputs, up to 20 MS/s, 12-bit resolution
• Supports digital and analog triggers
• 32-ch TTL digital I/O
• Onboard FIFO memory (16 K samples)
• 2 x RS-232 ports
• 2 x 10/100/1000 Base-T RJ-45 LAN ports
• 2 x USB 2.0 and 2 x USB 3.0 ports
• iDoor expansion supported

Introduction

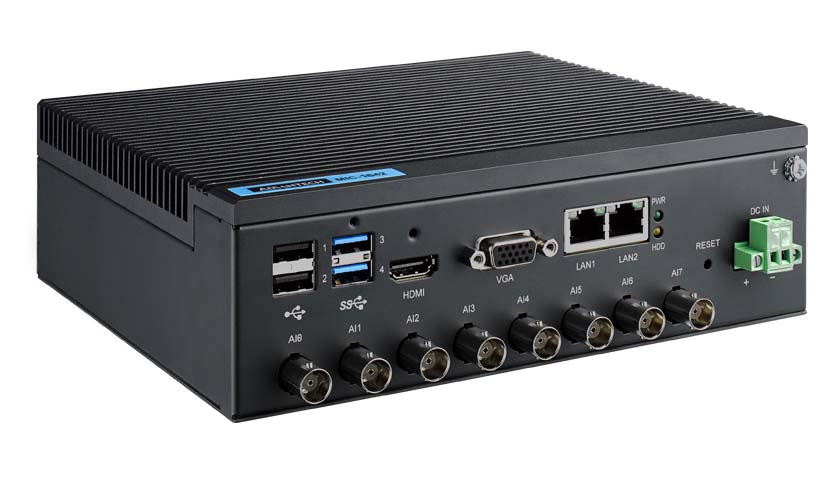

MIC-1842 is a high performance DAQ platform featuring an integrated DAQ module and signal conditioning to provide high speed analog input, TTL digital I/O, and triggering functions.
