Products > Advantech > Intelligent Connectivity > Managed Ethernet Switches

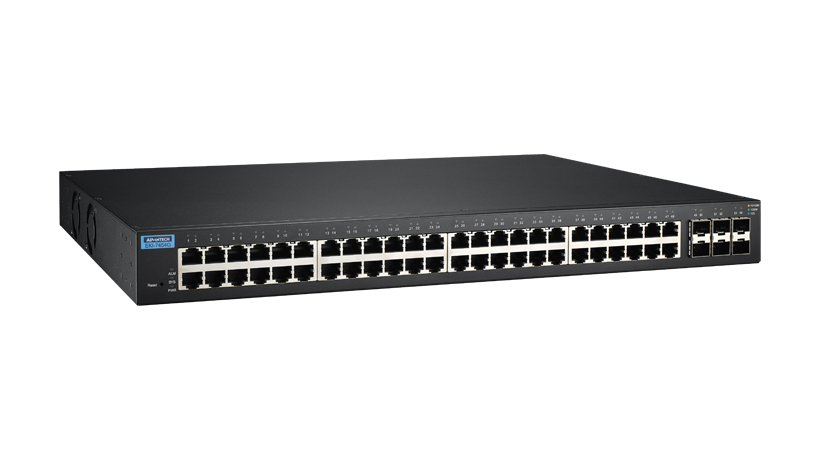

EKI-7454G-6X
48GE+6 10G SFP L2 Managed Switch


Main Features

- 48 Gigabit Ethernet Ports and 6 10G SFP Ports
- 0 to 60°C operating temperature range
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
- IXM Function Enables Fast Deployment
- Redundancy: Gigabit X-Ring Pro ((Ultra High-Speed Recovery Time < 20 ms), RSTP/STP (802.1w/1D), MSTP




Introduction

The EKI-7454G-6X is equipped with 48 Gigabit Ethernet ports plus 6 10G SFP+ ports. It is ideal for large-scale networks with server and surveillance applications, involving high-resolution videos and images, to achieve high performance and large-scale data transmission.




Specifications

PartNumber EKI-7454G-6X-AE
Certification
Ethernet Standard IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3ab, 802.3az, 802.3ae
EMC EN 55032:2015+AC:2016 ClassA
EN 61000-3-2:2014 Class A
EN 61000-3-3:2013
EN 55035:2017
FCC Part 15, Subpart B
Safety LVD 62368-1
Environment
Temperature (Max. Operating) 60°C (140°F)
Temperature (Min. Operating) 0°C (32°F)
Temperature (Operating Range) 0 ~ 60°C (32 ~ 140°F)
Humidity (Operating Range) 10 ~ 95%
Temperature (Storage Range) -40 ~ 70°C (-40 ~ 158°F) x
Ethernet Communication
Fiber Transmission Speed 1G/2.5G/5G/10G
Fiber Transmission Distance Up to 100 km
Fiber Port Connector Type SFP+ cage x
Fiber Port Interface x SFP+
RJ-45 Transmission Distance 100 m x
RJ-45 Port Connector Type ! RJ-45
RJ-45 Transmission Speed 10/100/1000 Mbps x
Mechanism
Mounting (Rack Mount) Yes
Dimensions (W x H x D) 441 x 44 x 270 mm
Power
Power Input (AC) 100 ~ 240 VAC x





* Product image is an approximate guide only.
