Products > Advantech > Intelligent Connectivity > Managed Ethernet Switches

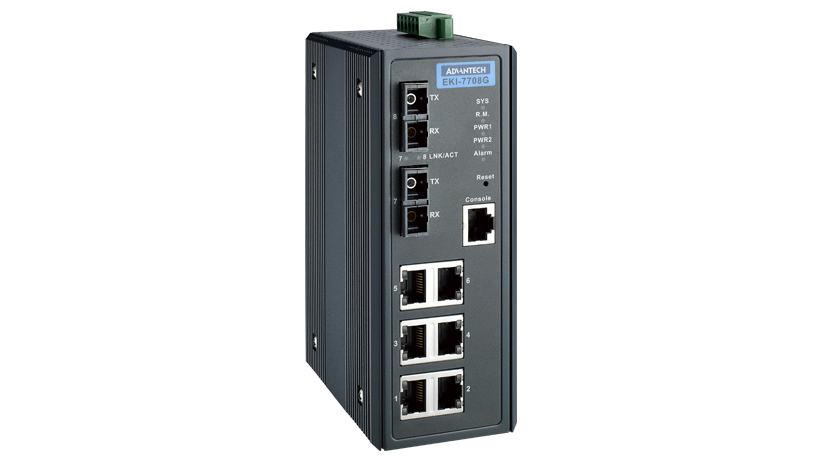

EKI-7708G-2SI

6G+2G Single-Mode SC Fiber Port Managed Switch

Main Features

- Provides 6 x 10/100/1000 Mbps Ethernet ports with RJ45 connector
- Provides 2 x 1000 Mbps fiber ports with SC type connector for 1000Base-SX/LX device
- Redundancy: X-Ring Pro (ultra-high speed recovery time <20 ms), RSTP/ STP(802.1w/1D)
- IXM function enables fast deployment
- Security: 802.1X (port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS
- Management: SNMP v1/v2c/v3, WEB, Telnet, and Console
- Supports redundant 12 ~ 48 VDC and 24VAC power input
- Provides flexible mounting: DIN-rail and wall mount

Introduction

EKI-7708G-2SI managed industrial Ethernet switch which support Gigabit Ethernet via built in fiber optic ports. These solutions feature embedded IXM functions to hasten deployment and reduce engineering time/costs. Extend transmission distances beyond fiber port to 10km (6.21 mi) in single-mode.

Specifications
PartNumber	EKI-7708G-2SI-AE
* Port Configuration
Description	6 x 10/100/1000 RJ45 + 2 x 1000 Single-Mode SC Fiber
Total Port Number	8
Certification
Safety	LVD IEC/EN 62368-1
EMI	CE, FCC Class A
EMC	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Freefall	IEC 60068-2-32
Shock	IEC 60068-2-27
Vibration	IEC 60068-2-6
Environment
Relative Humidity	10 ~ 95%
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F) x
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F) x
Ethernet Communication
Fiber Port Connector Type	SC Type x
Fiber Port Optical Mode	Single-Mode
Fiber Port Number	2
Fiber Transmission Distance	UP to 10 km
Fiber Transmission Speed	1000 Mbps
RJ-45 Port Number	6
RJ-45 Transmission Distance	100 m x
RJ-45 Transmission Speed	10/100/1000 Mbps x
Mechanism
Enclosure (Metal)	Metal shell
Dimensions (W x H x D)	59.6 x 152 x 105 mm (2.35 x 5.98 x 4.13 in.)
IP Rating	IP30
Mounting (DIN-rail)	Yes
Mounting (Wall)	Yes
Power
Power Input (DC)	12 ~ 48 VDC
Power Connector Type	6-pin removable screw terminal (power & relay)x
Power Consumption	7.4W (idle)
Redundant Dual Inputs	Yes
Switch Properties
MAC Table Size	8K
Packet Buffer Size	4.1M bit
Jumbo Frame	9,216 bytes
Warranty
Warranty Period	5 years
