Products > Advantech > Intelligent Connectivity > Managed Ethernet Switches

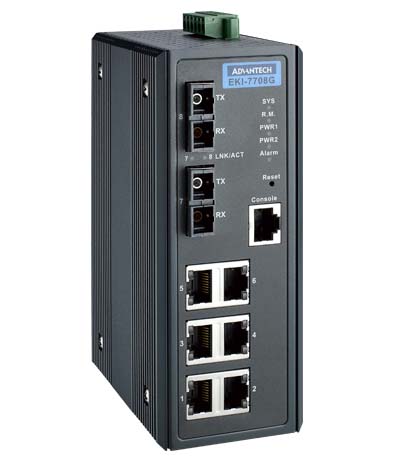

EKI-7708G-2MI

6G+2G Multi-Mode SC Fiber Port Managed Switch

Main Features

- Provides 6 x 10/100/1000 Mbps Ethernet ports with RJ45 connector
- Provides 2 x 1000 Mbps fiber ports with SC type connector for 1000Base-SX/LX device
- Redundancy: X-Ring Pro (ultra-high speed recovery time <20 ms), RSTP/ STP(802.1w/1D)
- IXM function enables fast deployment
- Security: 802.1X (port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS
- Management: SNMP v1/v2c/v3, WEB, Telnet, and Console
- Supports redundant 12 ~ 48 VDC and 24VAC power input
- Provides flexible mounting: DIN-rail and wall mount

Introduction

EKI-7708G-2MI managed industrial Ethernet switch which support Gigabit Ethernet via built in fiber optic ports. These solutions feature embedded IXM functions to hasten deployment and reduce engineering time/costs. Extend transmission distances beyond fiber port to 550m (1804 ft) in multi-mode.

Specifications
PartNumber	EKI-7708G-2MI-AE
* Port Configuration
Total Port Number	8
Description	6 x 10/100/1000 RJ45 + 2 x 1000 Multi-Mode SC Fiber
Certification
Safety	LVD IEC/EN 62368-1
EMI	CE, FCC Class A
EMC	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Freefall	IEC 60068-2-32
Shock	IEC 60068-2-27
Vibration	IEC 60068-2-6
Environment
Relative Humidity	10 ~ 95%
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F) x
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F) x
Ethernet Communication
Ethernet Standard	IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.1D, 802.1w,802.1p, 802.1Q, 802.1X, 802.3ad, 802.3ab
Fiber Port Interface x	Fiber
Fiber Port Connector Type	SC Type x
Fiber Port Optical Mode	Multi-Mode
Fiber Port Number	2
Fiber Transmission Distance	Up to 550 m
Fiber Transmission Speed	1000 Mbps
RJ-45 Port Connector Type !	6 x RJ-45 ports + 2 x SC type fiber optic
RJ-45 Port Number	6
RJ-45 Transmission Speed	10/100/1000 Mbps
Mechanism
Enclosure (Metal)	Metal shell
IP Rating	IP30
Dimensions (W x H x D)	59.6 x 152 x 105 mm (2.35 x 5.98 x 4.13 in.)
Mounting (DIN-rail)	Yes
Mounting (Wall)	Yes x
Weight	8 kg
Power
Power Consumption	7.4W (idle)
Power Input (DC)	12 ~ 48 VDC
Redundant Dual Inputs	Yes
Switch Properties
Jumbo Frame	9,216 bytes
MAC Table Size	8K
Packet Buffer Size	4.1M bit
Warranty
Warranty Period	5 years
