Products > Advantech > Intelligent Connectivity > Industrial PoE Switches & Solutions

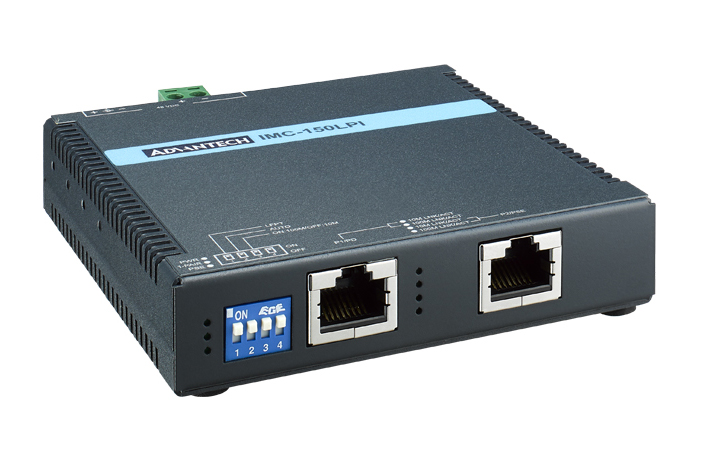

IMC-150LPI

Hardened PoE Long Reach Ethernet Extender, UTP

Main Features

- Extends Ethernet up to 800m at 10 Mbps or 500m at 100 Mbps over UTP cable
- Dual design with PoE+ PD/PSE
- Railway Trackside EN 50121-4
- Features Link Fault Pass Through (LFPT)
- Switch-selectable for configuring LAN rate and connection type

Introduction

Injecting data and power together, the IMC-150L series offers brand new leading products which break the 100-meter limitation for greater Ethernet transmission distances.

Specifications
PartNumber	IMC-150LPI
* Port Configuration
Total Port Number	2
Ethernet Communication
RJ-45 Port Number	1
Fiber Transmission Speed	10/100 Mbps
PoE Information
PoE Port Number	1
PoE-PSE	Yes
PoE-PD	Yes
Power
Power Input (DC)	48 VDC
Mechanism
Dimensions (W x H x D)	92.58 x 21.08 x 98.04 mm ( 3.65 x 0.83 x 3.86 in.)
Weight	0.4 kg
Environment
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F) x
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F) x
Humidity (Operating Range)	10 ~ 95% (non-condensing)
Certification
EMC	CE, FCC Class A, CSA x
