Our Products

Products > Advantech > Panel PC

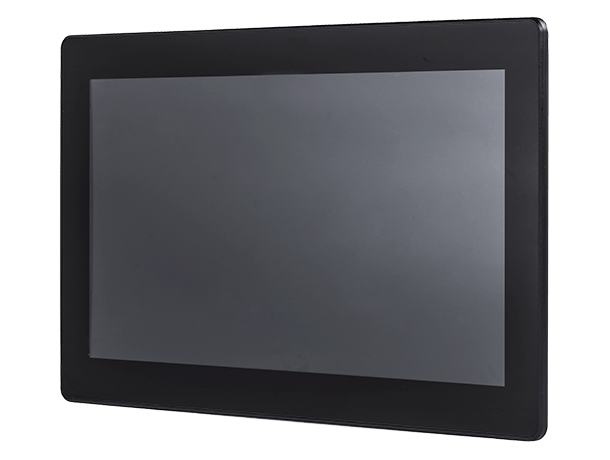

PPC-115W

15.6“ All-in-One Panel PC with Rockchip 3399 processor and Android 10 OS

Main Features

- True flat wide display screen with Pcap multi-touch.
- Embedded Rockchip 3399 processor, Dual-core Cortex-A72 up to 1.8GHz and Quad-core Cortex-A53 up to 1.4GHz.
- Onboard 2GB LPDDR4-1333 memory, 16GB eMMC NAND Flash.
- IP65 rated front panel protection.
- Supports VESA 100 and panel mounting(optional).
- Supports Linux or Android 10 pre-installed.

Introduction

PPC-115W is a 15.6“ All-in-One PPC with Rockchip 3399 processor and Android 10 OS pre-installed. Featuring 15.6“ widescreen display and 10 points Pcap multi-touch, IP65 rated front panel, VESA or panel mounting support, PPC-115W provides friendly experience and reliable integration possibility.

Specifications
PartNumber	PPC-115W-PK91A
Environment
Ingress Protection	Front Panel IP65
Operating Temperature	0~50 °C (32~122 °F)
Relative Humidity	10~95% RH (non-condensing)
Storage Temperature	-20~60 °C (-4~140 °F)
Vibration Protection	1 Grms, random
Hardware
Certification	CE, FCC Class B, BSMI, CB, UL, CCC, UKCA
CPU	Rockchip ARM® RK3399 Dual-core Cortex-A72 and Quad-core Cortex-A53
Expansion	1 x M.2 E Key 2230
I/O	1 x USB 2.0, 1 x USB 3.0, 1 x Mirco USB OTG, 1 x RS-232, 5 x GPIO
LAN	1 x 10/100/1000 Mbps
Memory	1 x 2 GB LPDDR4-1333
OS Support	Android, Linux
Power Consumption	12 W @ 12 VDC
Power Input	12 VDC
I/O Interface
Power Connector	1 x DC Jack
Serial Ports	1 x RS 232
LCD Display
Backlight Life (hrs)	15,000
Display Size	15.6 inch
Luminance (cd/m2)	220
Max. Resolution	1366 x 768
Viewing Angle (H/V°)	90/50
Mechanical
Dimension (W x H x D)	402 x 260 x 53 mm
Enclosure	PC+ABS, SECC
Mounting	Stand, Wall, VESA, Panel
Weight (Net)	2.6 kg (5.3 lb)
Touchscreen
Touch Type	PCAP
USB Vision
Connector	1 x USB 2.0 Type A, 1 x USB 3.0 Type A
