Main Features

• 15" XGA TFT LCD flat panel with projected capacitive (default) or resistive (by reuqest) touchscreen
• Intel® Core™ i7-1185G7E/i5-1145G7E/i3-1115G4E processor with fanless system design
• Dual channel memory slots, max 64G
• Supports either 1 x PCIe x4 or 1 x PCI
• 1 x M.2 bay (2242/2280 NVME or SATA Interface) for storage and support SATA RAID
• 1 x isolated RS-422/485 with auto flow
• Wide power input range (9 ~ 32 VDC)
• Dual 2500BASE-T Ethernet Supports Time-Sensitive Network(TSN) technology
• 3 x Independent displays

Introduction

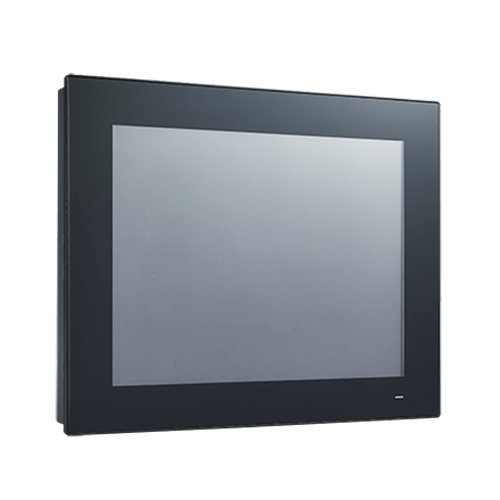

Designed for high-performance computing 11th gen applications, PPC-415 provides a superior human-machine interface and reliability. In addition, Time Sensitive Network (TSN) configuration integrated allows more possibilities for optimized industrial applications.
