Main Features

• Intel® Quad core x6413E processor with 4GB/8GB DDR4 onboard memory
• Compact, robust, fanless and cable-free system with high stability
• Optimized basic unit with 2 x GbE, 2 x USB, 1 x HDMI
• On-board full-size mPCIe port for various expansion capability
• Built-in TPM2.0 for hardware-based security
• System ground isolation design
• Certified with IEC 61010-2-201 for industrial application

Introduction

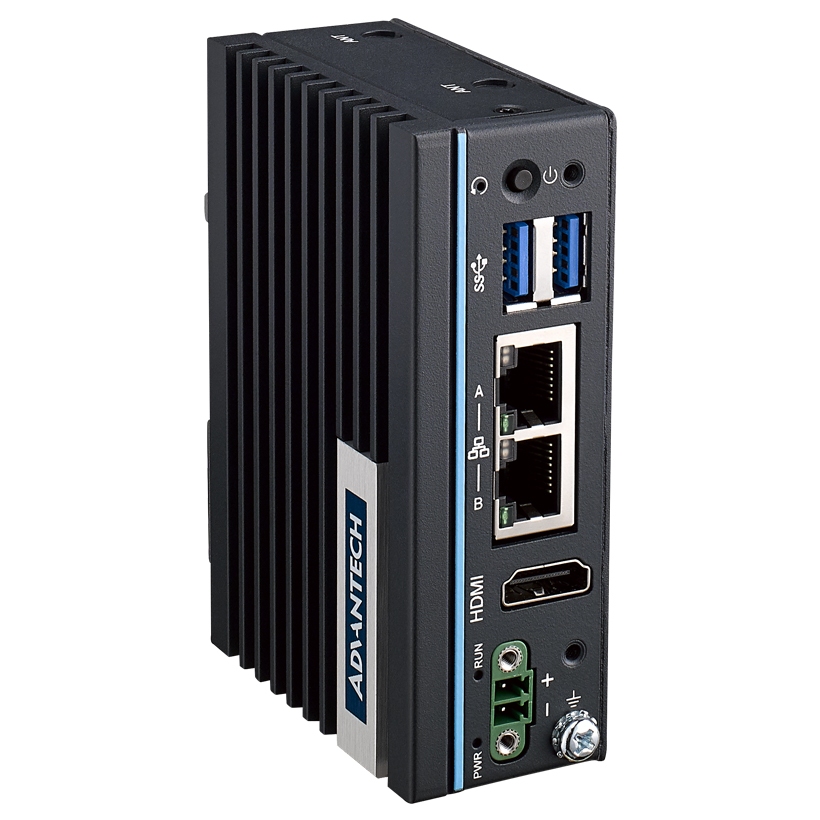

Advantech UNO-100 series are DIN-rail integrated controller featuring a modular design for flexible configuration according to specific usage requirements. UNO-127 is equipped with an Intel® Atom® 6413E processor, 4 or 8 GB DDR4 RAM, and 64G eMMC storage, as well as 2 x LAN, 2 x USB and 1 x HDMI.
