Main Features

- 1 x SC fiber connector
- Operation mode: Point-to-Point,Redundant and Ring(half-duplex)
- Half/Full-duplex, bidirectional transmission mode
- Automatic RS-485 data flow control
- LED indicator to monitor status

Introduction

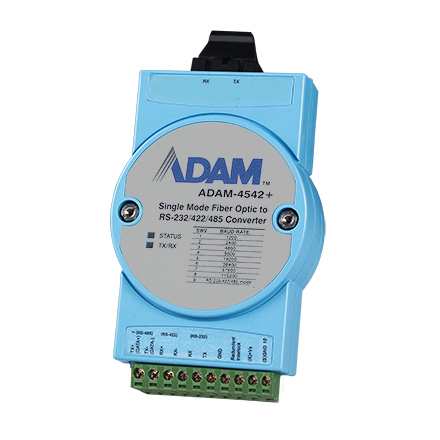

Fiber optic transmission offers the benefits of wide bandwidth, immunity to EMI/RFI interference, and secure data transmission. ADAM-4542+ can be used as a RS-232/422/485 point-to-point or point-to-multipoint connection for transmitting and converting full/half-duplex signals and their equivalents within a fiber optic environment. Fiber optics is the perfect solution for applications where the transmission medium must be protected from electrical exposure, lightning, atmosphere. ADAM-4542+ is specifically designed to link various machinery equipped with a RS-232/422/485 communication port (such as computer systems or manufacturing machines). Using standard SC type fiber connector, the modules fiber optic ports can accommodate a wide range of fiber optic cable sizes, including 62.5/125, 250/125, 100/140 mm.

Specifications
