Products > Advantech > Remote I/O&Wireless Sensing Modules

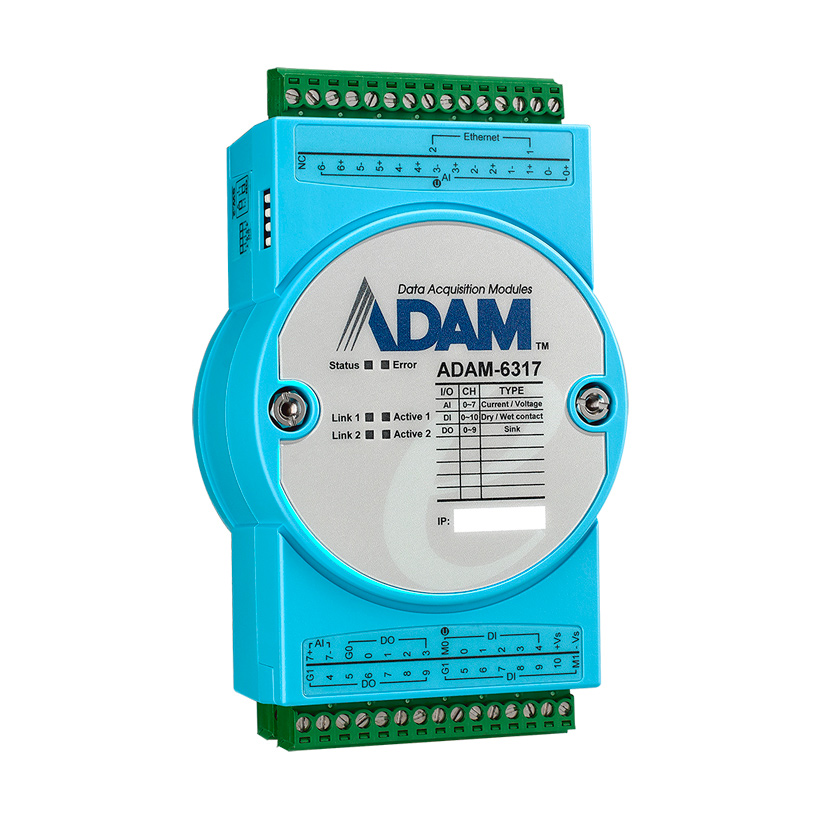

ADAM-6317

8AI/11DI/10DO IoT Modbus/OPC UA Ethernet Remote I/O

Main Features

- OPC UA empowers Modbus I/O users to access the industrial IoT world
- OPC UA I/O links SCADA and the cloud without the need for gateways, accelerating OT and IT convergence
- Hardware and software double security levels to prevent being hacked
- Cost-effective: high I/O density and daisy-chaining solution saves cost

Introduction

Advantech ADAM-6300 series is an innovative OPC UA I/O Module with Modbus protocol, which can link with SCADA and the cloud without the need for gateways. Moreover, through the OPC UA and built-in security IC, data is highly secured throughout the OT and IT levels.

Specifications
PartNumber	ADAM-6317-A1
Analog Input
Channels	8 differential
Resolution(Bits)	16-bit with ±0.1% FSR accuracy @25°C for voltage input, 16-bit with ±0.2% FSR accuracy @25°C for current input
Input Range	0~150 mV, 0~500 mV, 0~1 V, 0~5 V, 0~10 V, ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA, 0~20 mA, 4~20 mA
Sampling Rates(S/s)	10 or 100 (sum)
Isolated Digital Input
Channels	11
Input Voltage	Dry contact Logic level 0: close to GND, Logic level 1: open. Wet Contact Logic level 0: 0~3 VDC, Logic level 1: 10~30 VDC
Isolation Protection	2,500 VDC
Isolated Digital Output
Channels	10
Isolation Protection	2,500 VDC
Output Type	Sink
Sink Current	100 mA max./channel
