Products > SIEMENS > Industrial Monitor

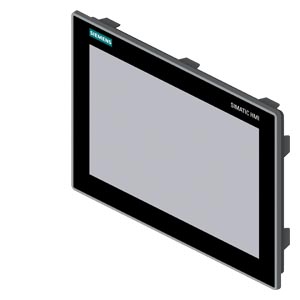

SIMATIC IFP1200

SIMATIC IFP1200 Basic Flat Panel 12" display (16:10), Touch, 1280 x 800 pixels, standard up to 5 m, for 24V DC, DisplayPort/VGA interface

Main Features

- SIMATIC IFP1200 Basic Flat Panel 12" display (16:10)
- Touch: Yes
- Resolution: 1280 x 800 pixels
- standard up to 5 m
- Voltage: 24V DC
- Graphic Interface: 1 x DisplayPort & 1 x VGA
- Frame color: black

Introduction

Article Number (Market Facing Number): 6AV7862-2BC00-0AA0

SIMATIC IFP1200 Basic Flat Panel 12"

** Datasheet download

General information
Product type designation	IFP1200 Basic
Short designation	Basic Flat Panel 12" Touch
Display
Design of display	TFT widescreen display, LED backlighting
Screen diagonal	12.1 in; 12"
On Screen Display (OSD) configuration	No
Number of colors	16 000 000; 16 million
Resolution (pixels)
● Image resolution	1 280 x 800
● Horizontal image resolution	1 280 pixel
● Vertical image resolution	800 pixel
General features
● Detachable from computer unit	5 m
Backlighting
● Type of backlighting	LED
● MTBF backlighting (at 25 °C)	50 000 h
● Backlight dimmable	Yes; 0-100 %
Control elements
Control elements	single-touch screen
Input device
● Integrated mouse cursor control	No
Touch operation
● Design as touch screen	Yes; Analog-resistive
Installation type/mounting
Design	Built-in unit
Front mounting	Yes
VESA mounting	Yes; VESA 100 x 100 integrated
Mounting in portrait format possible	Yes
Mounting in landscape format possible	Yes
Built-in unit	Yes; Portrait mode possible
maximum permitted forward tilt angle from vertical	45°
maximum permitted backward tilt angle from vertical	45°
Supply voltage
Type of supply voltage	DC
Rated value (DC)	24 V
permissible range, lower limit (DC)	20.4 V
permissible range, upper limit (DC)	28.8 V
Power loss, typ.	13 W
Power loss, max.	60 W
Interfaces
Number of USB interfaces	2; USB 2.0 (downstream)
USB on the rear	Yes; 2x onboard
Video interfaces
● DisplayPort	Yes
Touch interfaces
● USB	Yes; USB Type A
Degree and class of protection
IP (at the front)	IP65
Standards, approvals, certificates
CE mark	Yes
cULus	Yes; UL 61010-1, UL 61010-2-201
RCM (formerly C-TICK)	Yes
KC approval	Yes
EAC (formerly Gost-R)	Yes
FCC	Yes
Ambient conditions
Ambient temperature during operation
● min.	0 °C
● max.	45 °C
Ambient temperature during storage/transportation
● min.	-20 °C
● max.	60 °C
Relative humidity
● Operation, max.	85 %
Vibrations
● Vibration load in operation	5 m/s²
● Vibration load during transport/storage	10 m/s²
Shock testing
● Shock load during operation	150 m/s²
● shock acceleration during storage/transport	150 m/s²
Mechanics/material
Enclosure material (front)
● Aluminum	Yes
Dimensions
Width of the housing front	320 mm
Height of housing front	226 mm
Mounting cutout, width	302 mm
Mounting cutout, height	208 mm
Overall depth	51 mm
Weights
Weight (without packaging)	2.7 kg
