Products > Advantech > Human Machine Interface

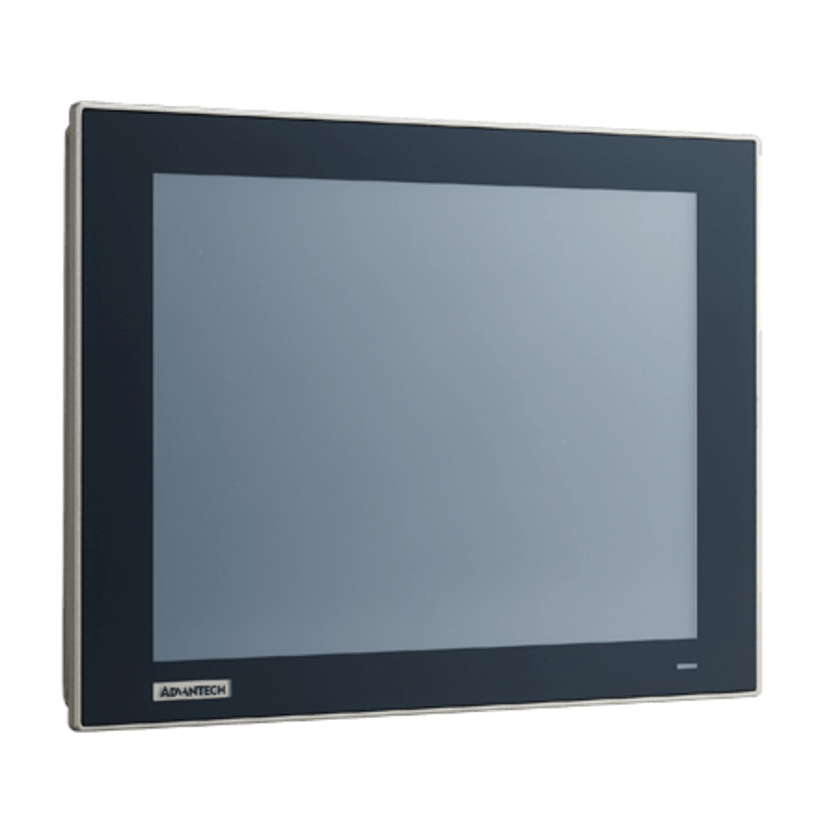

TPC-315 EHL

15" XGA Elkhart Lake Thin-Client Terminal with Intel® Atom™/ Celeron® Processor

Main Features

- Industrial-grade 15" XGA TFT LCD with 70K lifetime and LED backlight
- Intel® Elkhart Lake (EHL) Atom™ 6425E 2.00 GHz quad-core / Celeron® J6412 2.00 GHz quad-core processor with 4 GB DDR4 SDRAM
- True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
- Front-facing LED indicators to show operating status
- Built-in Advantech iDoor technology; SSD/HDD bay and VESA mount
- Compact, fanless system with aluminum alloy front bezel and chassis grounding protection
- Supports Advantech’s SNMP Subagent software
- Supports Advantech’s WISE-PaaS/RMM remote management software

Introduction

TPC-315 EHL thin-client terminal is a industrial panel PC model equipped with 15" XGA TFT LED LCD, low-power Intel® Atom™ 6425E 2.00 GHz quad-core / Celeron® J6412 2.00 GHz quad-core processor, and 4 GB of DDR4 SDRAM. TPC-315 EHL delivers high-performance computing in a compact, fanless system.
