Main Features

-   NXP® ARM® Cortex™-A53 i.MX 8M Mini quad-core processor
-   10.1" 16:9 LCD with multi-touch P-CAP and true-flat IP66-rated front panel
-   Up to 2 GB DDR4 RAM and 16 GB eMMC storage onboard
-   2 x 10/100/1000 Mbps LANs with optional IEEE 802.3at/af PoE-PD module support
-   1 mb FRAM backup memory for unexpected power interruptions
-   2 x Serial port with 120Ω termination resistor that one supports the CAN 2.0B protocol and offers a programmable bit rate of up to 1 Mb/sec
-   Embedded browser and for rapid Web App development
-   Supports Linux Yocto and Android
-   Optional and mPCIe expansion modules

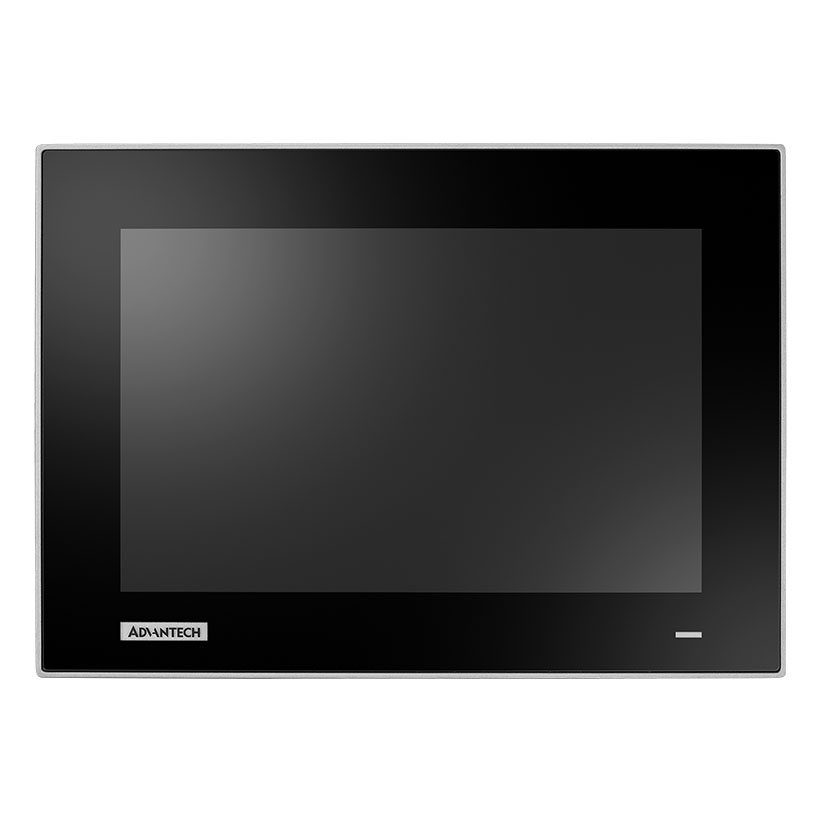

TPC-110W is equipped with an NXP® Cortex™-A53 i.MX 8M Mini quad-core processor. For web-based operations, TPC-110W offers two 10/100/1000 LANs that one supports the IEEE 802.3 PoE-PD standard. The inclusion of VNC and browsers enable rapid Web application development and easy configuration.
