Products > Advantech > Remote I/O&Wireless Sensing Modules

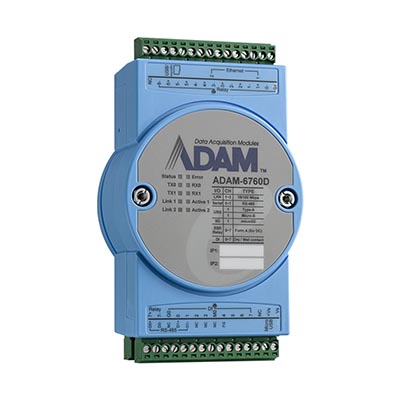

ADAM-6760D

8SSR Relay/8 DI Intelligent I/O Gateway

Main Features

Linux open platform

8-channel SSR relay/ 8-channel digital input

Programming: Linux C API, Node-RED (graphic programming environment)

Cloud / database access, edge data analysis and logic control, and data visualization by dashboard

Interfaces: RS-485x2, Ethernet port x 2 ,1 x USB Type-A 2.0, 1 x USB Micro-B 2.0

Introduction

ADAM-6700 series is an intelligent I/O gateway which offers an integrated solution in the form of a Linux-based gateway, capable of performing multiple tasks at the edge. The ADAM-6700 series is equipped with a range of I/O for comprehensive data acquisition functionality.

Specifications
PartNumber	ADAM-6760D-A
Counter/Encoder Input
Channels	8
Max. Input Frequency	3 kHz
Environment
Isolation Voltage	2,500 VDC
Operating Temperature	-40~70 °C (-40~158 °F)
Ethernet
No. of Ports	2
Speed	10/100 Mbps
General
Connectors	1 x 9-pin plug-in screw terminal, 2 x 15-pin plug-in screw terminal
Programming Language	Node-RED, Liunx C
Hardware
I/O	2 x RS-485, 1 x Micro USB, 1 x USB 2.0
OS Support	Linux
Storage	1 x micro SD Slot
Isolated Digital Input
Channels	8
Input Voltage	Dry contact Logic level 0: close to GND, Logic level 1: open. Wet Contact Logic level 0: 0~3 VDC, Logic level 1: 10~30 VDC
Power Requirements
Input Voltage	10~30 VDC
Relay Output
Channels	8 PhotoMOS SPST Form A
Contact Rating (Resistive)	1 A @ 25 °C @ 30 VDC, 0.7 A @ 70 °C @ 30 VDC
Relay Type	1 x Form A
