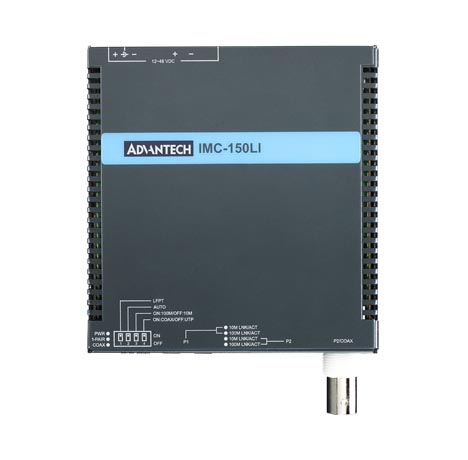

IMC-150LI

Hardened Long Reach Ethernet Extender, UTP, Coaxial

Main Features

Extends Ethernet up to 800m at 10 Mbps or 500m at 100 Mbps over UTP cable

Extends Ethernet up to 1km at 10 Mbps or 500m at 100 Mbps over Coaxial cable

Railway Trackside EN 50121-4

Features Link Fault Pass Through (LFPT)

Switch-selectable for configuring LAN rate and connection type

Specifications
PartNumber	IMC-150LI
Ethernet Communication
RJ-45 Port Number	2
Coaxial Port Number	1
Fiber Transmission Speed	10/100 Mbps
PoE Information
PoE Port Number	1
PoE-PD	Yes
Power
Power Input (DC)	12 ~ 48 VDC x
Mechanism
Dimensions (W x H x D)	92.58 x 21.08 x 98.04 mm ( 3.65 x 0.83 x 3.86 in.)
Weight	0.4 kg
Environment
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F) x
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F) x
Humidity (Operating Range)	10 ~ 95% (non-condensing)
Certification
EMC	CE, FCC Class A, CSA x
