Main Features

-  1 x 10/100 Mbps Ethernet port
-  Provides COM port redirection (Virtual COM), TCP, and UDP operation modes
-  Baud rate: supports up to 230.4 Kbps
-  Maximum of five hosts can access one serial port
-  Maximum of 16 hosts accessed in TCP client mode
-  Built-in 8-kV ESD protection for all serial signals
-  Provides multiple configuration configuration methods including Windows utility, Telnet console, and web browser
-  Supports 32/64-bit Windows 2000/XP/Vista/7/8/8.1/10, Windows Server 2003/2008/2012, and Linux
-  "I" models support a wide operating temperature

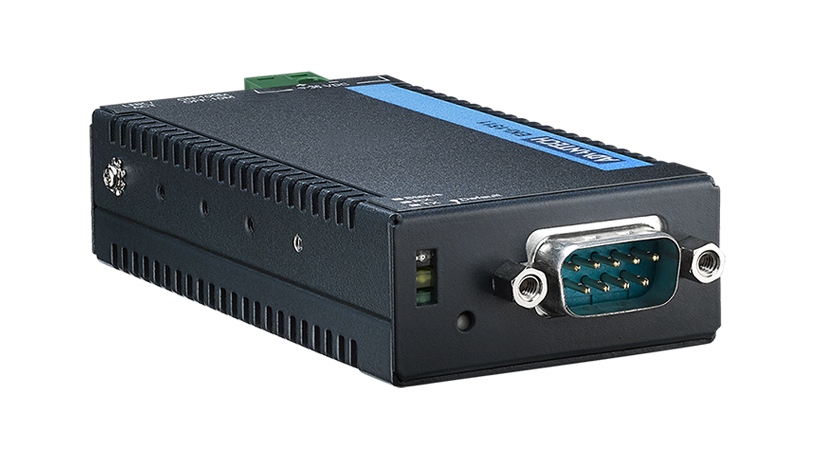

The EKI-1511 Series focuses on the entry level device server market, providing an economic solution that is designed to connect RS-232 or RS-422/485 serial devices such as PLC, meters, sensors, and barcode readers to an IP-based Ethernet LAN.
