Main Features

-  Encoder input: 5 MHz for CW/CCW,P/D,AB mode; Pulse output: up to 5 MHz
-  Supports memory buffer (10 K points) for trajectory planning
-  Supports point-to-point, line and E-Gear; Supports hardware emergency input
-  Circular and helical interpolation (PCIE-1245 only)
-  Position latch up to 10KHz and memory buffer 1K points (PCIE-1245 only)
-  Position compare triggering up to 100 KHz, and memory buffer is up to 100 K points (PCIE-1245 only)
-  1D&2D plane position compensation (PCIE-1245 only)
-  Gantry mode by semi-closed loop pulse train control (PCIE-1245 only)
-  Dynamic PWM output for velocity following (PCIE-1245 only)

> Datasheet (PDF)

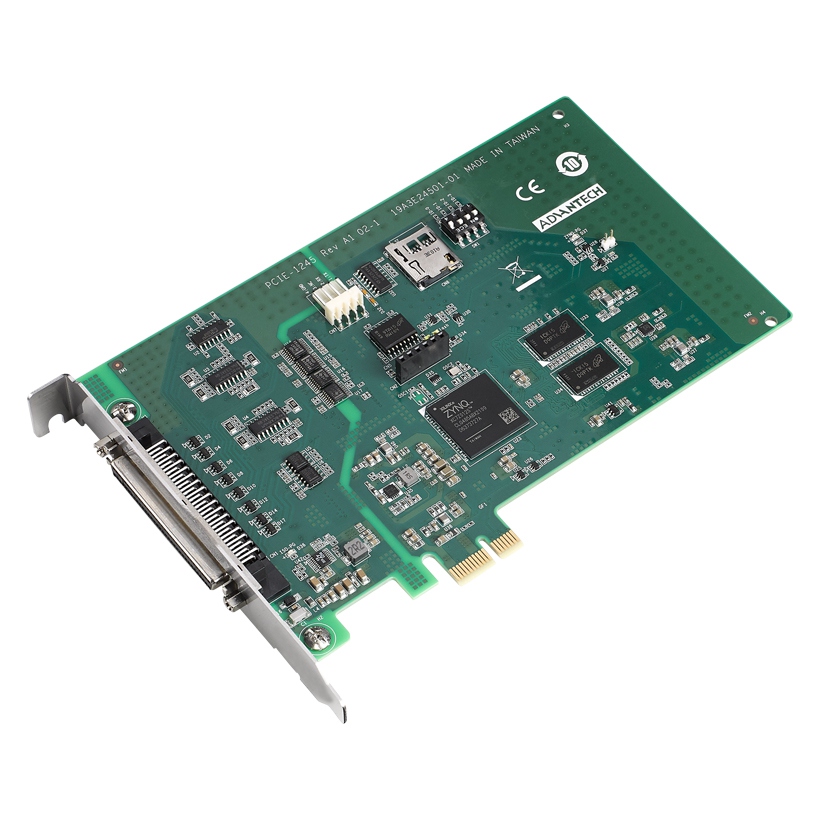

PCIE-1245/1245E series are 4-axis motion control PCI Express cards designed for electrical and traditional machine automation applications. Equipped with SoftMotion algorithm, the board can perform motion trajectory and timing control to meet the synchronization in precise movement.
