Products > Advantech > Intelligent Connectivity > Access Point/Client Bridges

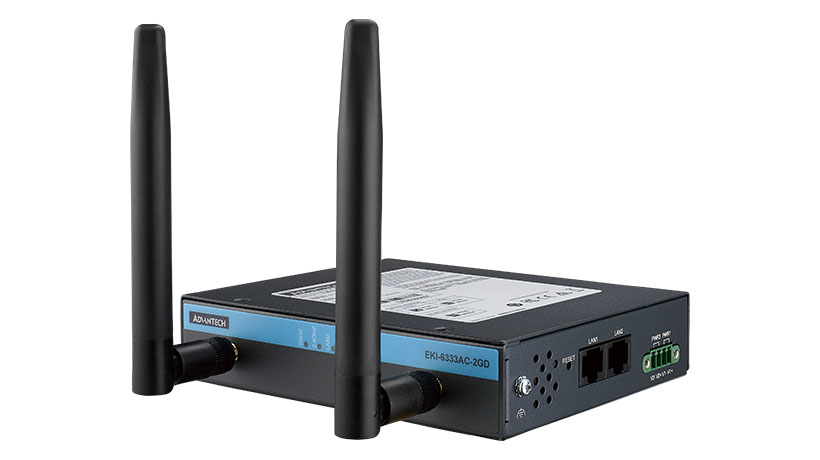

EKI-6333AC-2GD

IEEE 802.11 a/b/g/n/ac Wi-Fi Access Point

Main Features

Supports 802.11ac MIMO 2x2
WLAN transmission rates up to 1167 Mbps
Supports secure access with WEP, 802.1x, WPA/WPA2-Personal, WPA/WPA2-Enterprise
Provides web-based configuration
Supports dual-band 2.4/5GHz concurrent

Introduction

The EKI-6333AC-2GD is a feature-rich wireless access point in DIN-rail design that provides reliable connectivity for industrial environments.

Specifications
PartNumber	EKI-6333AC-2GD-A
Certification
EMC	EN 55032, EN 55024
EMI	FCC Part 15 Subpart B (Class B)
EMS	EN 61000-6-1, EN 61000-6-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
Environment
Relative Humidity	10 ~ 95% RH
Temperature (Operating Range)	-20 ~ 70°C (-4 ~ 158°F)
Temperature (Storage Range)	-30 ~ 80°C (-22 ~ 176°F)
Ethernet Communication
RJ-45 Port Connector Type !	RJ-45
RJ-45 Port Number	2/td>
RJ-45 Transmission Speed	10/100/1000 Mbps
Mechanism
Dimensions (W x H x D)	191.6 x 114.3 x 47.7 mm (7.54 x 4.49 x 1.88 in.)
Enclosure (Metal)	Metal
IP Rating	IP30
LED Indicator	System: Power WLAN: Link/Active LAN: Link/Active
Mounting (DIN-rail)	Yes
Mounting (Wall)	Yes
Weight	0.555 kg
Power
Power Connector Type	RJ-45
Power Consumption	Max. 17W
Power Input (DC)	24 VDC
Redundant Dual Inputs	Yes
Software (SW)
Configuration	Web browser
Protocols	ARP, ICMP, IPv4, IPv6, TCP, UDP, DHCP Client, DHCP Server, Auto IP, Telnet, DNS, SNMP, HTTP, DMZ, PPPoE, VPN Passthrough, Telnet Server, SSH Server, FTP Server, QoS
Reboot Trigger	Built-in WDT (watchdog timer)
Warranty
Warranty Period	2 years
Wireless Communication
Wi-Fi 2.4 GHz	Yes
Wi-Fi 5 GHz	Yes
Wi-Fi Antenna Connector Type	Reverse SMA
Wi-Fi Antenna Number	2 (support 2T2R)
Wi-Fi Free Space Range	Open space 100 m
Wi-Fi Network Mode	Infrastructure
Wi-Fi Operation Mode	Access Point/ Repeater/ Client mode
Wi-Fi RF Capability	2T2R
Wi-Fi Transmission Speed	Up to 1167 Mbps
Wireless Security	WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise
Wi-Fi Standard	IEEE 802.11 a/b/g/n/ac
