Main Features

• Intel® Atom™ E3950 quad-core processor with 8GB of DDR3L memory
• 2 x Gigabit Ethernet, 2 x RS-422/485 with isolation protection, 1 x RS-232 console port
• IP66 rating for protection from water and dust ingress
• Wide operating temperature range (-40 ~ 70 °C/-40 ~ 158 °F)
• Built-in TPM 2.0 for hardware-based security
• 1 x M.2 (E-key) and 1 x M.2 (B-key) expansion sockets for integrating CE-RED-compliant Wi-Fi, LTE, and GPS wireless communication modules
• Enclosure with front door and cable gland design ensures easy installation and maintenance
• C1D2, ATEX, and IECEx certification for explosion tolerance

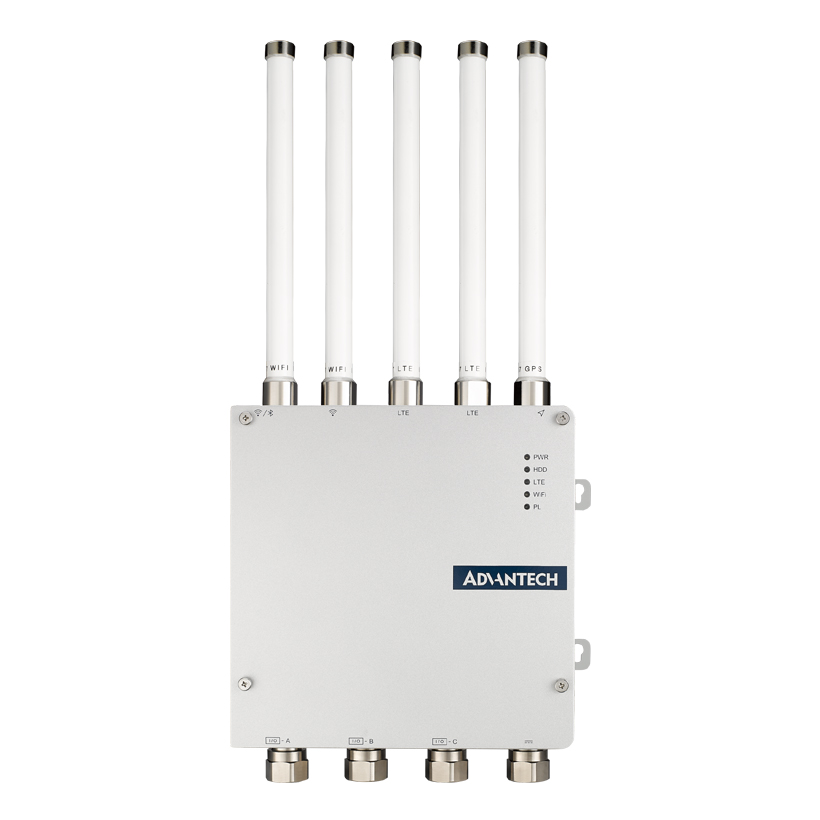

UNO-430 EXP features all-around IP66-rated ingress protection and cable gland I/O connectors to provide a truly water and dust proof solution. With C1D2, ATEX, and IECEx certification for explosion tolerance, UNO-430 EXP is ideal for applications that can withstand the most demanding applications.

Specifications
