Products > Advantech > Embedded Automation Computers > Explosion-Proof Computer

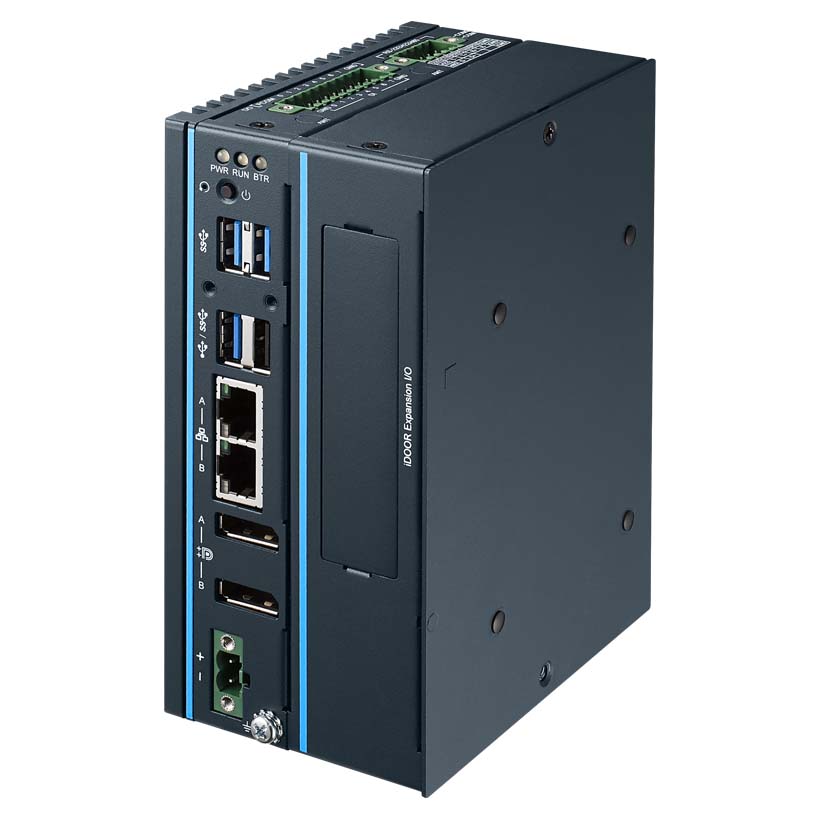

UNO-410

Intel® Atom® Explosion-Proof DIN-Rail Gateway with UL C1D2, ATEX/IECEx Zone 2 Certification

Main Features

Explosion protection with UL listed Class 1, Division 2 /ATEX Zone 2/ IECEx Zone 2 certification
Intel® Atom® E3940 processor (1.6 GHz) with 8 GB DDR3L memory
Port isolation for 8 x DI, 8 x DO, 2 x COM
Dual storage with M.2 2242 SATA SSD and 2.5” HDD/SSD
Onboard TPM 2.0 provides hardware-based security
Supports M.2 3042/3052 module

Introduction

UNO-410 is an explosion-proof DIN-rail gateway with rich I/O including 2 x GbE, 4 x USB, 2 x COM, 2 x DP, 8 x DI, 8 x DO, and 1 x M.2 B key, 1 x mPCIE to offer expandable wireless connectivity. Certified by UL C1D2 and ATEX/ IECEx Zone 2, UNO-410 can be safely operated in hazardous locations.

Specifications
PartNumber	UNO-410-E1H	UNO-410-E1HX
Environment
Ingress Protection	IP40	IP40
Operating Temperature	-40~55 °C (-40~131 °F)	-40~55 °C (-40~131 °F)
Relative Humidity	95% RH (non-condensing)	95% RH (non-condensing)
Shock Protection	50 G, half sine	50 G, half sine
Storage Temperature	-40~85 °C (-40~185 °F)	-40~85 °C (-40~185 °F)
Vibration Protection	4 Grms, random	4 Grms, random
Hardware
Certification	UL, CE, FCC, CCC, C1D2	UL, CE, FCC, CCC, Class 1 Division 2, ATEX /IECEx Zone 2
CPU	Intel® Atom® E3940 1.60GHz Quad-Core	Intel® Atom® E3940 1.60GHz Quad-Core
Graphics Engine	Intel® HD Graphics	Intel® HD Graphics
Hardware Security	TPM 2.0	TPM 2.0
Memory	1 x SO-DIMM with 8 GB DDR3L 1600 MHz	1 x SO-DIMM with 8 GB DDR3L 1600 MHz
OS Support	Microsoft® Windows 10 2019 LTSC, Linux	Microsoft® Windows 10 2019 LTSC, Linux
Power Input	10~36 VDC	10~36 VDC
Storage	1 x 2.5" SSD/HDD bay, 1 x M.2 B key	64 G SSD
I/O Interface
Displays	2 x DP	2 x DP
Expansion	1 x Full-size mPCIe Slot, 1 x M.2 B key, 1 x SIM Card Slot	1 x Full-size mPCIe Slot, 1 x M.2 B key, 1 x SIM Card Slot
LAN Ports	2 x 10/100/1000 Mbps	2 x 10/100/1000 Mbps
Power Connector	1 x 2-Pin Terminal Block	1 x 2-Pin Terminal Block
Serial Ports	2 x RS-232/422/485	2 x RS-232/422/485
USB Ports	3 x USB 3.2, 1 x USB 2.0	3 x USB 3.2, 1 x USB 2.0
Mechanical
Dimension (W x H x D)	70 x 105 x 150 mm	70 x 105 x 150 mm
Enclosure	Aluminum housing	Aluminum housing
Weight (Net)	1 kg (2.2 lb)	1 kg (2.2 lb)
Local I/O
General Digital I/O	8-ch DI, 8-ch DO	8-ch DI, 8-ch DO
