Main Features

• Designed specifically for machine vision applications
• 4-ch lighting control output with trigger input
• Programmable delay time, PWM high/low time, and output lighting duration
• Up to 350 mA and 40 VDC digital output capability by external power
• 12-ch isolated digital input and 16-ch isolated digital output
• Software configurable digital filter for isolated digital input and trigger
• Software selectable sink (NPN)/source (PNP) type for isolated digital output
• 2,500 VDC isolation protection for all I/O signals

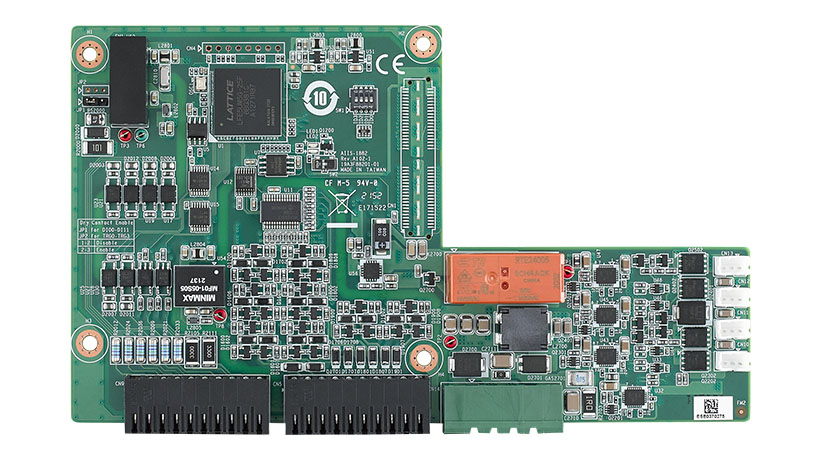

The AIIS-1882 is a 4-ch lighting control with 4-ch digital trigger, 12-ch isolated DI/16-ch isolated DO expansion module. The programmable delay time, PWM high/low time, and output lighting duration make it suitable for machine vision applications. All I/O signals are protected by isolation circuit.
