Products > Advantech > Power & Energy > Intelligent Communication Gateways

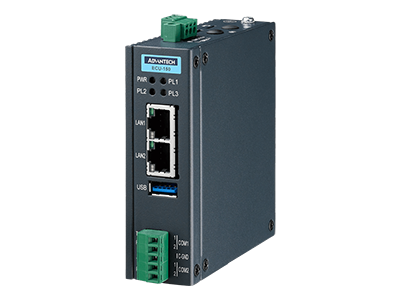

ECU-150

NXP i.MX8M Quad Core Cortex A53, High-Performance IoT Gateway with 2 x LAN, 2 x COM, 1 x USB

Main Features

NXP i.MX8M Quad Core Cortex A53 1.3G CPU
DDR4 2GB RAM, 16GB eMMC for system storage
2 x RS-232/485 isolated serial ports
2 x 10/100/1000 Ethernet ports
1 x Mini-PCIe for WIFI/Cellular/4G
Support web service for remotely on-line monitoring
Support SD card & on-line firmware update
Support Modbus, IEC-60870-5, DNP3.0, OPC-UA, BACNet protocol
Support Data logger on SD card

Introduction

ECU-150 is an i.MX8M based high-performance IoT gateway, which has an open platform design with Quad Core processor, two RS-232/485 isolated serial ports, two 10/100/1000 Ethernet ports, one USB 3.0 port and operating temperature range of -40~70°C. It offers Mini-PCIe and M.2 slot.

Specifications
PartNumber	ECU-150-12A
General
Humidity (Storage)	5~95% RH (non-condensing)
Programming Language	Linux C
Protocol	OPC-UA Client & Server, DNP3.0 Client & Server, IEC-60870-5-104 Master & Slave, IEC-60870-5-101 Slave, Modbus RTU/TCP Master & Slave, BACNet/IP Server
Grounding Protection	Chassis grounding
Hardware
LAN	2 x 10/100/1000 Base-T Ethernet
Watchdog Timer	Programmable
Expansion	1 x Full-size mPCIe slot
Certification	CE, FCC class A
OS Support	Linux 4.9
Power Input	10~30 VDC
CPU	NXP® ARM® Cortex™ A53 i.MX8M 1.3 GHz Quad-Core
Memory	1 x LPDDR4 with 2 GB
Storage	16 GB eMMC
LED Indicators	Power, LAN (Active, Link), Serial (Tx/Rx), Programmable
I/O Interface
Serial Ports	2 x RS-232/485 (Terminal Block)
USB Ports	1 x USB 3.0
Power Connector	1 x 3-Pin Terminal Block
Environment
Vibration Protection	1 Grms, random
Ingress Protection	IP30
Operating Temperature	-40~70 °C (-40~158 °F)
Storage Temperature	-40~85 °C (-40~185 °F)
Isolation Voltage	2,500 VDC
Expansion Function
SIM card slot	Nano SIM card
Mechanical
Mounting	Wall, DIN-rail
Form Factor	Passive Cooling and Front Accessible
Enclosure	Aluminum housing, Steel
Dimension (W x H x D)	100 x 93 x 30 mm
