Products > Advantech > Panel PC

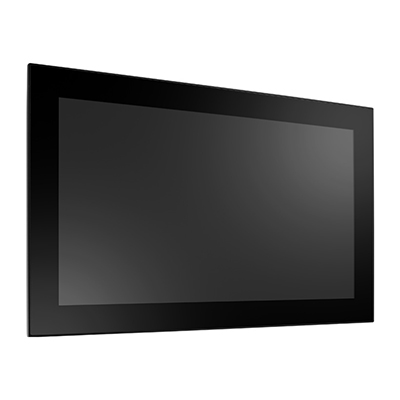

PPC-315W TGL

15.6" Fanless Panel PC with Intel® Core™ i7/i5/i3 processor

Main Features

Industrial-grade 15.6" FHD LCD panel with 50k backlight lifetime
True-flat touchscreen with multi-touch projected capacitive contr
High-performance, fanless 11th generation Intel® Core™ i processor
Dual channel memory slots, max 64G
Compact, fanless design with aluminum alloy enclosure
IP66-rated front panel
Supports dual displays (1 x external HDMI)
1 x M.2 bay (2242/2280 NVME or SATA Interface) for storage and support SATA RAID 0, 1
Support TPM2.0 hardware security

Introduction

PPC-315w TGL is an 15.6” Fanless Panel PC equipped Intel 11th Gen Core i7/i5/i3, providing high computing performance with robust aluminum alloy enclosure. It is an excellent solution to enable quick date capture, processing and data digitalization in various industrial applications.

Specifications
PartNumber	PPC-315W-PB50A
Environment
Ingress Protection	Front Panel IP66
Operating Temperature	-10~50 °C (14~122 °F)
Relative Humidity	10~95% RH (non-condensing)
Storage Temperature	-20~60 °C (-4~140 °F)
Vibration Protection	1 Grms, random
Hardware
Certification	CE, FCC Class B, BSMI, CB, UL, CCC, UKCA
CPU	Intel® Core™ i5-1145G7E 1.5GHz Quad core
Ethernet	Intel® i219-LM GbE, Intel® i225-LM GbE
Expansion	1 x M.2 E Key 2230
I/O	1 x RS-232, 1 x RS-232/422/485, 3 x USB 3.2, 1 x USB 2.0, 1 x Type C, 1 x HDMI, 1 x Line Out
LAN	1 x 10/100/1000 Mbps, 1 x 10/100/1000/2500 Mbps
Memory	2 x DDR4 SO-DIMM Slot
OS Support	Microsoft® Windows 10, Microsoft® Windows 10 LTSC, Linux
Power Consumption	60 W @ 19 VDC
Power Input	12~30 VDC
Hardware Security	TPM 2.0
I/O Interface
Displays	1 x HDMI
Power Connector	1 x 2-Pin Terminal Block
Serial Ports	1 x RS-232, 1 x RS-232/422/485
LCD Display
Backlight Life (hrs)	50,000
Display Size	15.6"
Luminance (cd/m2)	450
Max. Resolution	1920 x 1080
Viewing Angle (H/V°)	160/170
Mechanical
Dimension (W x H x D)	420 x 269 x 62 mm
Enclosure	Die-cast aluminum alloy
Mounting	Stand, Wall, VESA, Panel
Weight (Net)	4.8 kg ( 10.67 lb)
Touchscreen
Touch Type	PCAP
USB Vision
Connector	3 x USB 3.2 Type A, 1 x USB 2.0 Type A, 1 x Type C
