Products > Advantech > Data Acquisition (DAQ) > Signal Conditioning Modules and Terminal Boards > Isolated/Relay Digital I/O Terminal

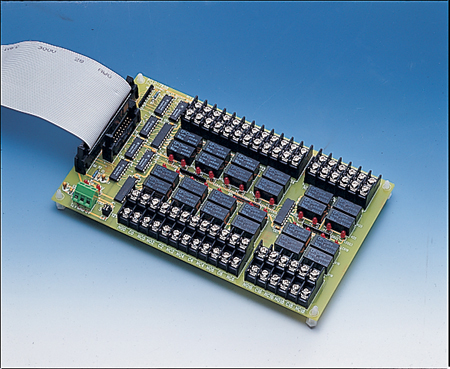

PCLD-785

16-ch Relay Board

Main Features

Automatic selection of control logic (PLCD-785B only):
Negative logic for the Opto-22 connector Positive logic for the 20-pin flat cable connector

Screw terminals for easy output wiring

LED status indicators

Introduction

The PCLD-785 carries 16/24 SPDT electromechanical relays with a 20-pin flat cable connector and an additional 50-pin Opto-22 connector (for PCLD-785B only) compatible with the digital outputs of most I/O Cards. The number of output channels available on the PCLD-785B depends on the connector you use. The I/O card’s 50-pin connector accesses all 24 channels, while its 20-pin connector has access to 16 channels.
